ASTM C1629 Standard Classification for Abuse‑Resistant Nondecorated Interior Gypsum Panel Products and Fiber‑Reinforced Cement Panels

ASTM C1629 defines three performance grades: Level I (lowest), Level II, Level III (highest) for interior non‑decorated wall panels, purely based on laboratory mechanical abuse‑resistance test results of panel products (not full wall assembly systems). All tests inside C1629 focus on abrasion, indentation, hard‑body impact, soft‑body impact mechanical performance.

Four Mandatory Mechanical Test Methods

There are four core mechanical test methods in mandatory annex A1‑A4, which determine Level I‑III classification of abuse‑resistant panels:

A1 Hard‑Body Impact Test

A2 Soft‑Body Impact Test

A3 Indentation Resistance Test

A4 Surface Abrasion Resistance Test

Industry application fields

ASTM C1629 applies to non‑decorated interior abuse‑resistant gypsum panels and fiber‑reinforced cement wall panels widely used in commercial and institutional construction projects:

High‑traffic commercial building interiors: schools, hospitals, clinics, correctional facilities, retail malls, hotel back‑of‑house areas, gymnasium corridors, public restrooms.
Building material manufacturers: new‑product R&D, batch quality control, product‑grade classification and labelling.
Third‑party independent testing laboratories for building‑material certification.
Architects, specifiers, contractors: objective performance benchmark to select appropriate wall‑panel grade (Level I / II / III). Level III delivers highest anti‑abuse performance for harsh‑usage environments.

Important limitation: This standard only grades the standalone panel product performance. It does not evaluate full wall‑system performance (studs, joint treatment, fastener selection). Actual on‑site wall performance may differ from lab test result.

Why ASTM C1629 is Important for Wall‑Panel Materials

Unified performance benchmark: Before ASTM C1629 release, abuse‑resistant wall panels lacked uniform lab‑test evaluation rules. Manufacturers could not compare anti‑abuse performance on equal ground; specifiers had no objective criteria to choose products. C1629 defines repeatable lab test conditions and clear Level I‑III thresholds.
Quantify real‑world damage modes: The four mechanical tests replicate typical real‑world interior wall damages: surface scuffing, small‑object denting, hard‑object kick/tool strike, heavy‑blunt‑object collision. Lab‑derived Level rating helps predict field durability.
Support specification & procurement: In North‑America commercial building projects, many architectural specifications reference ASTM C1629 classification to specify minimum required Level grade for high‑wear zones. It reduces ambiguous marketing claims.
Quality‑control tool for factories: Gypsum‑panel and fiber‑cement panel manufacturers use C1629 mechanical tests for incoming raw‑material validation, new‑formula development and finished‑product batch inspection.
Lab‑equipment guidance: The detailed annex drawings, specimen dimension, fixture and apparatus specification give testing‑equipment manufacturers (such as UnitedTest) clear engineering requirements to build compliant ASTM C1629 testing rigs for global customers.

Major Mechanical Tests Specified in ASTM C1629

1, A1 Hard‑Body Impact Test	Evaluate panel penetration / permanent deformation resistance when struck by rigid hard objects (e.g. tool strike, boot kick). Failure definition: impact head penetrates panel, or residual indent depth exceeds nominal panel thickness
Test Equipment	1. Swing‑type ramming‑arm hard‑body impact apparatus built from 14‑gauge B‑Line B24 framing channels. 2. Ramming arm impactor (base total weight 20.0 lb / 9.07 kg ± 0.5 %), with cylindrical steel impact head; mass centre drop height fixed at 12 in (305 mm). Additional incremental counter‑weights (2.5 lb /1.1 kg per step) increase impact energy. 3. Securing pin/release mechanism; rigid floor anchorage to avoid frame sliding.
Test Specimen info	Specimen dimension: 2 ft × 2 ft (610 mm × 610 mm). Mounted onto test frame with 3‑5/8 in (92 mm) deep 30‑mil steel studs; S‑12 bugle‑head screws spaced 8 in (200 mm) on‑center. One fresh specimen for every single impact trial. Minimum three identical specimens shall confirm failure energy
Test Procedure	1. Fasten assembled wall specimen to apparatus frame, align impact‑head plane flush to specimen face. 2. Lift ramming arm to top swing position and lock; release for first impact. 3. Increase impactor weight step‑by‑step (add 2.5 lb weight increment), use new specimen for each impact. 4. Continue testing until failure condition occurs. Confirm failure energy across three valid specimens. Record impact energy and damage mode for each test.
2, A2 Soft‑Body Impact Test	Simulate blunt heavy‑mass impact (e.g. human body collision, large heavy furniture bump). Structural failure: residual deflection of panel exceeds nominal panel thickness at any location of impacted zone

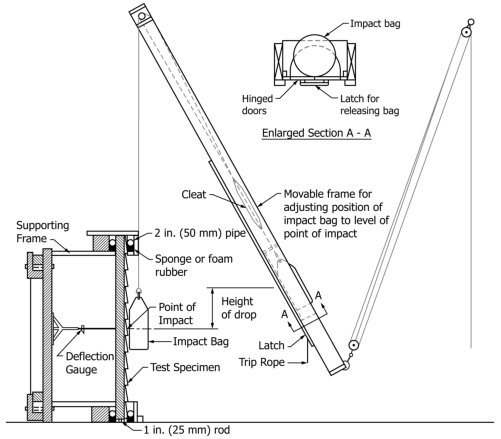

Test Equipment	1. Pendulum soft‑body impact apparatus, release hinged‑door latch to swing leather impact bag as pendulum. 2. Standard leather impact bag: total mass 60 lb (27.2 kg ± 1 %), filled with steel shot (1‑3.5 mm diameter), reinforced 8‑oz /12‑oz leather construction with double stitching. 3. Vertical wood stud wall frame; rigid steel supporting frame to hold test assembly; sponge‑rubber anti‑restraint roller supports at top and bottom. 4. Dial gauge / dial indicator (0.0005 in resolution) for residual deflection measurement; measuring tape for pendulum drop‑height control.
Test Specimen info	Full‑size panel specimen: 4 ft × 8 ft (1200 mm × 2400 mm). Mounted to PS20 compliant nominal 2×4 wood stud frame with studs 16 in (406 mm) on‑center. Screws fasten panel perimeter and field area. Multiple specimens may be needed until termination criteria are met. Measure panel thickness by ASTM C473 method before test
Test Procedure	1. Mount specimen onto wood stud frame, install frame into pendulum rig; impact point locates mid‑span between studs, mid‑height of panel. 2. Raise impact bag to defined drop‑height, release via hinged door, catch bag on rebound to prevent secondary strike. 3. Increase drop‑height in 6 in (150 mm) increments after every impact. Measure residual deflection (three‑point average reading) after each blow. 4. After structural failure on one cavity, shift to adjacent cavity and raise starting drop‑height another 6 in. Repeat test sequence until structural failure happens on first drop in fresh cavity, then terminate test. Record bag weight, deflection values, failure energy.
3, A3 Indentation Resistance Test	Evaluate denting resistance from small sharp‑ish hard objects; fixed‑energy falling‑weight impact (72 in‑lbf / 12.6 J). Rank material performance by final indent depth
Test Equipment	1. Vertical drop indentation tester: guide tube, falling impact mass (2 lb / 0.9 kg or 4 lb / 1.8 kg), hardened rounded‑nose striker (diameter 0.625 in ± 0.004 in /15.86 mm). Specimen support anvil with 0.640 in diameter hole. 2. Heavy rigid base (minimum weight 375 lb /170 kg; bolt to concrete floor if lighter). Rubber mats underneath tester are prohibited. 3. Depth micrometer (0.001 in / 0.0254 mm precision) for indent‑depth measurement; laboratory balance
Test Procedure	1. Condition specimens, inspect for surface cracks and defects. 2. Position specimen flat on support anvil, align striker centre over test area. Release fixed‑weight impactor from calibrated height for 72 in‑lbf impact energy. 3. Remove specimen and measure indent depth with depth micrometer. Repeat for ≥12 specimens, calculate average indent depth for classification.
Test Specimen info	5 in × 5 in (125 mm × 125 mm ± 3 mm) small square pieces. Cut from original panel (trim edge 4 in minimum). Prepare total 16 specimens, discard samples deviating > 10 % from average mass. No less than 12 specimens are tested per batch. Specimens must be conditioned to constant weight following ASTM C473 conditioning requirements.
4, A4 Surface Abrasion Resistance Test	Test surface scuff / wear resistance caused by repeated friction, simulating long‑term surface rubbing damage in high‑traffic areas.
Test standard	ISO 8513
Test Equipment	1. Oscillating abrasion fixture machine, completing exactly 50 forward‑back cycles within 60‑70 seconds; constant downward load of 25 lb (11.3 kg ± 4 %), stroke length 6 in (150 mm). 2. Standard steel‑wire bristle abrasion brush (22 holes, 40 tempered steel wires per hole, wire diameter 0.012 in /0.305 mm). Brush maximum service life: 20 tests before replacement. New brush needs pre‑conditioning (150 cycles on mineral‑surface asphalt shingle). 3. Depth micrometer with flat‑bottom measuring rod, precision of 0.001 in; stop‑watch for cycle‑time verification.
Test Procedure	1. Install conditioned brush, secure specimen inside oscillating holder. Lower weighted brush onto specimen surface. 2. Run machine for total 50 complete oscillation cycles. Lift brush assembly, remove specimen. 3. Locate the deepest abraded groove, measure maximum abrasion depth. Report the worst‑case deepest abrasion value for classification. Clean brush and holder after each test run.
Test Specimen info	2 in × 9 in (50 mm × 230 mm). Minimum three specimens per product. Cut strip away from panel edges (≥ 6 in margin). Condition as per ASTM C473.

Keywords: ASTM C1629 test machine, ASTM C1629 hard body impact test, soft body impact test, gypsum panel indentation test, surface abrasion test for gypsum board, abuse‑resistant wall panel mechanical testing, fiber‑reinforced cement panel lab test equipment, UnitedTest ASTM C1629 testing solution, ASTM C1629,abuse resistant gypsum board,impact resistant drywallhard, body impact test, soft body impact test, indentation resistance test, surface abrasion test, fiber reinforced cement panel, gypsum board testing machine, pendulum impact tester, falling weight impact tester, abrasion testing machine, abuse resistance classification

Heavy duty frame falling dart impact testing machine mainly used to test plastic, film, or sheet thickness below 1mm, impact by falling dart, check the energy when 50% of test specimen broken. Conform with standard: ISO 7765-1, ASTM D1709

ASTM D4977 granule adhesion test machine is professional laboratory instrument to quantify the adhesion quality of mineral granules to coating asphalt on asphalt shingles and mineral-surfaced roofing sheets.

Fiber reinforced concrete (FRC) Flexural Testing Machine can according ASTM C1550 determines the flexural toughness of fiber-reinforced concrete. Flexural toughness is the maximum stress (put) onto a specimen before it cracks or breaks.

Side-by-side comparison of the four C1629 test methods

Item	Hard body impact (A1)	Soft body impact (A2)	Indentation (A3)	Surface abrasion (A4)
Damage simulated	Rigid, concentrated blow / puncture	Heavy blunt body (person, sack)	Small hard knock, concentrated contact pressure	Scuffing, scraping, repeated rubbing
Loading type	Pendulum, incremental energy	Pendulum bag, incremental drop height	Falling weight, fixed energy	Oscillating weighted brush, fixed load
Energy / load	20 lb arm @ 12 in drop; +2.5 lb steps → 50/100/150 ft·lbf	60 lb bag; +6 in steps → 90/195/300 ft·lbf	72 in·lbf via 2 lb or 4 lb impactor	25 lb on brush, 6 in stroke, 50 cycles in 60–70 s
Specimen	2 ft × 2 ft [610 × 610 mm] on 3⅝ in steel studs, Type S-12 screws @ 8 in o.c.	Full 4 ft × 8 ft [1200 × 2400 mm] panel on 2×4 wood frame @ 16 in o.c.	5 × 5 in [125 × 125 mm], 12–16 pieces	2 × 9 in [50 × 230 mm], 3 pieces
Substrate frame	Steel studs (non-combustible, stiff)	Wood studs, PS20, free to deflect	Solid anvil + ≥375 lb base	Oscillating frame
Measured quantity	Energy to penetration / thickness-exceeding dent	Energy to residual deflection > panel thickness	Depth of dent (in / mm)	Depth of abraded groove (in / mm)
Result direction	Minimum (higher = better)	Minimum (higher = better)	Maximum (lower = better)	Maximum (lower = better)
Key auxiliaries	Barbell weights, release pin	Leather bag + shot, PVC rollers, foam pads, dial gauge	Depth micrometer, balance	Wire brush, conditioning shingle, stopwatch
Typical level achieved by	Dense core + glass fibre mesh	Mesh-reinforced core, thicker board	Dense core, hard facer	Hard face paper / coating, fibre-cement surface

Adjacent standards used with C1629 in practice

ASTM C1396/C1396M — Specification for Gypsum Board (regular, Type X, Type C, water-resistant and other types). C1629 classifies abuse; C1396 governs the board itself.

ASTM C1177 / C1178 — glass-mat gypsum substrate / glass-mat faced panels, common abuse-resistant substrates.

ASTM C1325 / C1186 — fiber-cement backer board and non-asbestos fiber-cement products.

ASTM C1185 — Test methods for sampling and testing non-asbestos fiber-cement flat sheet (flexural strength, density, moisture movement, water absorption, freeze/thaw) — the companion physical test set for the fiber-cement panels covered by C1629.

ASTM D5420 — falling-weight (Gardner) impact resistance of plastics; the apparatus lineage behind the C1629 indentation tester.

ASTM D4977 — abrasion test apparatus lineage behind the C1629 surface abrasion fixture.

IBC / code language — abuse-resistant gypsum board requirements in institutional occupancies point back to the C1629 classification, so specifiers cite "C1629 Level X" directly rather than trade names.

Industry applications and how to specify the right level

Sector / location	Typical exposure	Usual level target
Offices, hotel guest rooms, light commercial	Occasional scuffs, chair backs	Level I–II
School corridors, stairwells, cafeteria queues, dormitories	Backpacks, lockers, body impact, daily traffic	Level II, Level III on hard body in corridors
Hospitals and clinics — corridors, ED, soiled utility, equipment alcoves	Gurneys, service carts, beds, wheelchairs, 24/7 traffic	Level III hard body + Level II/III indentation in cart-impact zones
Correctional and detention facilities, psychiatric units	Deliberate and repeated impact	Level III (all properties, security-grade assemblies)
Transit hubs, airports, stadiums, elevator lobbies	Luggage, carts, very high traffic density	Level III abrasion + Level II/III impact
Gymnasia, locker rooms, industrial back-of-house	Ball impact, equipment, wet areas	Level II–III; fiber-cement panels where moisture is present
Residential — children's activity areas, garages, utility rooms	Toys, bikes, tools	Level I–II
