ASTM C109 : Standard Test Method for Compressive Strength of Hydraulic Cement Mortars (Using 50 mm [2 in.] Cube Specimens)

ASTM C109 is the fundamental test method for determining the compressive strength of hydraulic cement using 2-inch (50-mm) mortar cubes. It specifies a standardized procedure to prepare, cure, and test 50-mm (2-in.) cube mortar specimens for compressive strength. The mortar mix ratio is 1 part cement to 2.75 parts standard sand (by mass). For Portland/air-entraining Portland/Portland-limestone cements, water content is fixed; for other cements, water is adjusted to achieve a flow of 110±5 (per 25 drops on a flow table, ASTM C230). Specimens are compacted in two layers by tamping, cured, and loaded in compression until failure to calculate strength as peak load divided by cross-sectional area.

The test principle:

A standardized mortar is prepared from the cement to be tested, a specified graded sand, and a measured water amount. The mortar is molded into cubes, cured under controlled conditions, and then crushed in a compression machine at specific ages (e.g., 3, 7, 28 days). The compressive strength is calculated by dividing the maximum load at failure by the cross-sectional area of the cube.

Concrete/cement mortars are strong in compression but weak in tension. The test applies axial compressive load to the cube’s face to measure peak load at failure. Compressive strength is calculated as fm=P/A (where P = peak load, A = loaded area, 2500 mm² for 50-mm cube), reflecting the mortar’s ability to resist crushing loads—critical for cement quality and mix design validation.

Test Specimen Information of ASTM C109:

Type	Mortar cubes.
Dimensions	50 mm (2 inches) on each side. This is a critical, non-negotiable specification.
Number	A minimum of three cubes are tested for each test age (e.g., three cubes broken at 7 days).
Mold Material	Non-absorbent molds (typically hard metal or plastic) that maintain the precise dimensions.
Mortar Proportion	A fixed weight ratio of 1 part cement : 2.75 parts graded standard sand : 0.485 parts water (for a water-cement ratio of 0.485). The standard sand is a natural silica sand meeting ASTM C778 specifications.

ASTM C109 Compression Testing of Cement Mortar

Test Equipment associated with ASTM C109 concrete test:

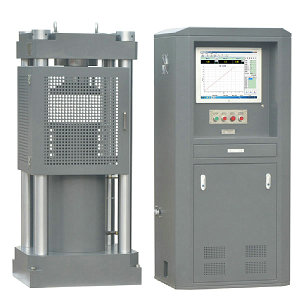

Compression Testing Machine	A hydraulic or screw-type machine conforming to ASTM C349 or the more general ASTM E4. It must be capable of applying load at a controlled rate and have hardened bearing blocks slightly larger than the cube faces.
Mixer & Mixing Bowl	A standardized mechanical mixer (as per ASTM C305) that ensures uniform, reproducible mortar.

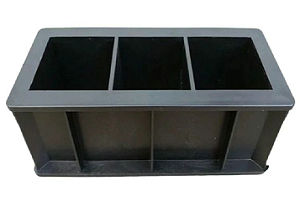

Cube Molds	2-inch (50-mm) cube molds, typically in gangs of three or six.
Trowel & Tamper	A straight-edged trowel and a tamper for compacting mortar in the molds.
Moist Room/Curing Tank	For moist curing at 73.5 ± 3.5°F (23.0 ± 2.0°C) and >95% relative humidity.

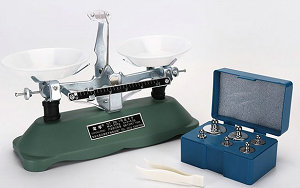

Weights and Scales	For accurately measuring materials.

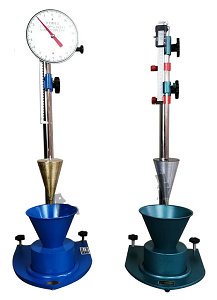

Mortar Flow Consistometer	(As per ASTM C1437) to determine the water required to achieve a standard flow of 110 ± 5% for the mortar. This is a critical preliminary step.
Glass Graduates	250-mL capacity, meets ASTM E438/E694 for water measurement

Why The Compressive Strength Is Important in Concrete Engineering?

Compressive strength is the single most important property measured in cement mortar and concrete engineering. It serves as the primary indicator of structural capacity and quality control.

In essence, compressive strength measures a material's ability to withstand axial loads that push it together—the dominant stress in most concrete elements like columns, foundations, walls, and dams. A high compressive strength directly correlates to the load-bearing capacity of a structure, ensuring it can support its own weight, occupant loads, and environmental forces safely.

Beyond raw capacity, it is a key proxy for overall quality and durability. A well-proportioned, properly mixed, and adequately cured mix will develop high compressive strength. This strength implies a dense, impermeable microstructure that better resists penetration by water, chlorides, and sulfates, thereby enhancing longevity and reducing maintenance.

For engineers, it is the fundamental specification criterion. Design codes are based on characteristic compressive strengths (e.g., 20 MPa, 30 MPa). The test per ASTM C109 provides a standardized, reliable benchmark to verify that a cement or mortar mix meets its specified strength grade, ensuring consistency and safety across projects.

In summary, compressive strength is the essential metric that links material science to structural performance, dictating safety, durability, and the economical design of virtually all cement-based construction.

Test Procedure (Step-by-Step details):

Flow Test (Preliminary): A trial batch of mortar is mixed and its flow is measured on a flow table. The water content is adjusted until the mortar has a flow of 110 ± 5%. This water-to-cement ratio (typically close to 0.485) is then used for all subsequent compressive strength batches.

Mixing: The cement, sand, and water are mixed in the mechanical mixer following a strict sequence and timing outlined in the standard (ASTM C305).

Molding: The mortar is placed in cube molds in two layers. Each layer is tamped a specified number of times to consolidate it, then the excess is struck off with a trowel for a smooth finish.

Initial Curing: Molds are stored in the moist room for 20-24 hours before demolding.

Demolding & Final Curing: After demolding, the cubes are immediately placed in lime-saturated water for curing until the moment of testing. The water temperature is maintained at 73.5 ± 3.5°F (23.0 ± 2.0°C).

Testing (Breaking):

Cubes are tested at prescribed ages (commonly 3, 7, and 28 days). The age is calculated from the time of water addition to the cement.

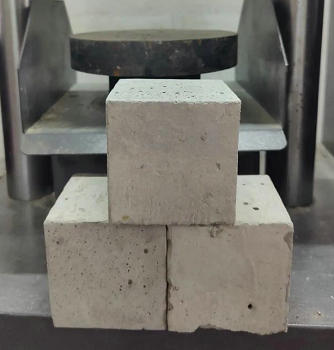

The cube is centered on the lower platen of the testing machine.

The load is applied continuously and without shock at a rate of 900 to 1800 N/s (200 to 400 lbf/s) until failure.

The maximum load (in N or lbf) sustained by the cube is recorded.

Calculation: Compute compressive strength (fm=P/A) and report average of 3 specimens (discard outliers if >10% of mean).

Calculation of Compressive Strength of ASTM C109 cement motor

Formula:

Compressive Strength (psi or MPa) = Maximum Load (lbf or N) / Cross-sectional Area (in² or mm²)

The cross-sectional area is that of the cube face: 4 in² (2581 mm²) for a perfect 2-inch (50-mm) cube.

The result for each age is the average strength of the set of at least three cubes, reported to the nearest 10 psi (0.1 MPa).

Related standard with the ASTM C109 for cement motor compression testing:

ISO 679 Cement - Test methods - Determination of strength

EN 196-1 Methods of testing cement-Determination of strength

ASTM C349: Standard Test Method for Compressive Strength of Hydraulic-Cement Mortars (Using Portions of Prisms Broken in Flexure)

KS L 5105 Standard Test Method for Compressive Strength of Hydraulic Cement Mortars

EN 1015 Methods of test for mortar for masonry-Determination of flexural and compressive strength of hardened mortar

BS 4551 Mortar. Methods of test for mortar and screed. Chemical analysis and physical testing

AS 2701 Methods of sampling and testing mortar for masonry construction

EN 934 Admixtures for concrete, mortar and grout-Admixtures for grout for prestressing tendons. Definitions, requirements, conformity, marking and labelling

Main Test Application:

Determine compliance of hydraulic cements (like ASTM C150 Portland Cement or ASTM C595 Blended Cement) with their specified strength requirements.

Conduct research and development on cement properties.

Provide a standardized, reproducible benchmark for comparing different cements or the effect of admixtures, as it eliminates the variables of coarse aggregate present in concrete tests.

Quality Control/Assurance: Verifies cement compliance with ASTM C150/C595; ensures mortar batches meet project specs.

Mix Design Optimization: Evaluates cement type, admixtures, and sand gradation impact on strength.

Material R&D: Compares new cement formulations or supplementary cementitious materials (SCMs) performance.

Specification Compliance: Mandatory for construction projects to confirm cement meets structural safety/durability requirements.

Curing Validation: Assesses curing effectiveness to prevent strength loss from improper hydration.

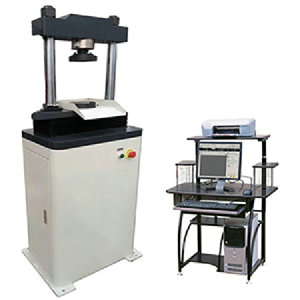

electronic compression testing machine is our latest research and development for scientific research institutes, industrial and mining enterprises to use a new generation of testing instruments, with simple structure, low noise, high precision advantages, direct use of high-precision spoke load sensor force measurement, servo motor drive system loading, so that the whole machine to achieve higher precision.

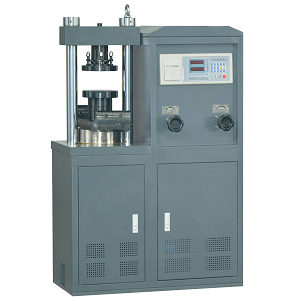

Hydraulic Compression Strength Testing Machine to test cement, brick and concrete is offered by United Test. Use hydraulic power driving, hydraulic servo control technology, computer to collect and process data, close loop test with high accuracy for various test materials. Consist of frame, oil source, control system, test fixture. Accuracy class 1, max. test load 300KN.
