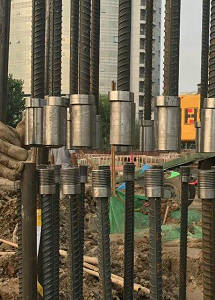

ASTM A1034/A1034M: Standard Specification for Mechanical Splices for Steel Reinforcing Bars
Its primary purpose is to evaluate the mechanical and geometric properties of mechanical splices (also called couplers) used to connect reinforcing steel bars in concrete construction. It ensures these splices can reliably transfer tensile and compressive forces between bars, maintaining the structural integrity of the reinforcement.
ASTM A1034 evaluates the splice device itself, not the reinforcing bar. The test verifies if the splice meets the performance criteria typically specified in building codes (like ACI 318) and other standards (like ASTM A1034's companion material specification, ASTM A1044).
Keywords
Bar Splicing - Bars, Rods, and Rebars - Mechanical Splices - Reinforced Concrete - Reinforcing Bars - Splices - Splicing - Steel Rebars

| Test Method | Purpose | Key Requirements |
|---|---|---|
| Monotonic Tension Test | Measure strength, ductility, and failure mode under increasing tension | Loading rate: 70–700 MPa/min (10–100 ksi/min) up to yield; post-yield per ASTM E8/E8M |
| Monotonic Compression Test | Evaluate performance under increasing compression to check for buckling or splice collapse | Max load: typically 155% of rebar yield strength; strain rate ≥ 0.005/min (elastic range) |
| Cyclic Load Test | Simulate seismic loading with tension-compression cycles beyond yield strain | Cycles continue until specified count or failure |
| High-Cycle Fatigue Test | Assess resistance to frequent elastic load cycles (e.g., bridges) below yield strength | Run until failure or 2 million cycles |
| Slip Measurement | Quantify plastic movement between bars in the splice after load-unload cycles | Measure differential displacement at nominal zero load post-test |
| Differential Elongation Test | Compare elongation of spliced vs. unspliced bars under the same load | Use extensometers to capture deformation differences |
| Low-Temperature Test | Evaluate splice performance in cold regions | Pre-condition specimens via cold-soaking (≥24 h) before testing |
ASTM A1034 Test Specimen Information:
The test specimen is an assembly, not a single piece.
Components: Two pieces of steel reinforcing bar (rebar) of the same grade and size, connected at their ends by the mechanical splice device under evaluation.
Bar Specimens: The rebar used must conform to a standard like ASTM A615 (carbon steel), A706 (low-alloy steel), etc. The bar size and grade are the splice's stated capacity.
Splice Location: The splice is assembled in the center of the total bar length, following the manufacturer's instructions (including required torques for threaded splices).
Gauge Length: The standard defines a specific gauge length (distance between extensometer attachment points) that includes the splice to measure total elongation and slip.
| Parameter | Requirement |
|---|---|
| Length (Tension/Cyclic) | Grip-to-coupler end distance: 1–3 bar diameters per side; gage length for extensometers = coupler length + 2–6 bar diameters |
| Length (Compression) | Grip-to-coupler end distance ≤ 1 bar diameter to prevent buckling |
| Material Matching | Splices and rebars must be from the same heat of steel for consistent results |
| Installation | Assembled per manufacturer’s instructions; torque/installation data must be recorded |

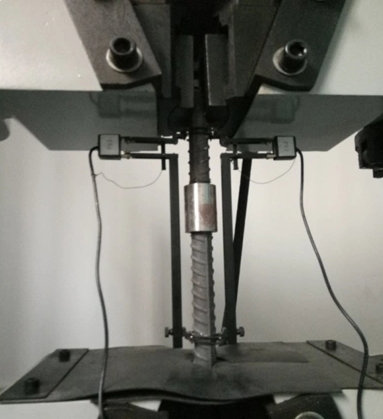

ASTM A1034 steel coupler test specimen |

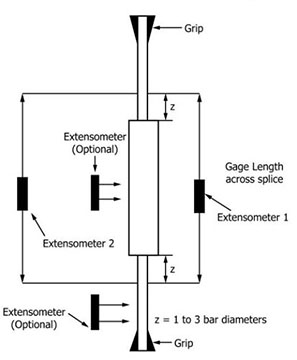

Specimen Set-up and Gage Length |
Test machine and device required for A1034:
Universal Testing machine / Fatigue Testing machine: Electronic output with data acquisition ≥ 1 sample/s.
Extensometers: Minimum 2 devices, equally spaced around the specimen, to track elongation continuously.
Strain Gages: Avoided for force measurement (prone to failure at yield)
Test procedure of ASTM A1034:
| Tensile Strength Test: | Procedure: The assembled specimen is placed in a universal testing machine and loaded in tension. Measurement: The ultimate tensile force at which failure occurs is recorded. Acceptance Criterion: The splice must fail either by fracture of the rebar outside the splice (the ideal "bar-break" failure, proving the splice is stronger than the bar) or meet a minimum strength threshold (e.g., 125% of the bar's specified yield strength) if failure occurs in the splice.
|
| Slip Test | Procedure: Conducted duringthe initial phase of the Tensile Strength Test. Measurement: Using displacement transducers, the relative movement between the end of the rebar and the splice housing is measured as the load is applied up to the bar's specified yield strength. Acceptance Criterion: The slip must not exceed a very small allowable limit (e.g., 0.01 inches or 0.25 mm) to ensure a rigid connection. |
| Cyclic Loading Test | Procedure: After the slip test (and before final tensile failure), the specimen is subjected to a series of load cycles. A common pattern is 20 cycles between a lower and upper stress level (e.g., 10% to 90% of the bar's yield strength). Measurement: Hysteresis behavior (load vs. deformation) and any degradation in stiffness are monitored. Acceptance Criterion: The splice must withstand the cycles without visual damage, excessive permanent deformation, or a significant change in stiffness. |
| Monotonic Compression | Procedure: Apply load at strain rate ≥ 0.005/min (elastic range) until 155% yield strength or failure. Measurement: Use anti-buckling guides; monitor for splice collapse or bar buckling. Acceptance Criterion: The splice must not fail in compression at a load less than 50% of the bar's specified yield strength in compression(or exhibit excessive deformation). This ensures it can handle construction loads and compressive stresses in columns. |
The evaluation of test results focuses on the strength, deformation, and ductility of the joint. The most critical requirement is that the tensile strength of the joint must not be less than the standard tensile strength of the connected rebar, and the fracture should occur in the parent material of the rebar; this is the basic requirement for strength qualification. The residual deformation value is used to assess the stiffness and recovery ability of the joint, and its measured value must not exceed the limit specified in the standard. Based on differences in tensile strength and performance under repeated tension and compression conditions with high stress and large deformation, the standard classifies joints into different performance levels to meet the structural requirements for varying seismic design intensity. | |
Key Parameters Measured:
Ultimate Tensile Strength of the spliced assembly.
Failure Mode (preferably bar break outside the splice).
Free End Slip at yield load.
Performance under cyclic loading.
Compressive Strength.
Related products and device
Related Standard
ISO 15835-1:2009 specifies requirements for reinforcement couplers,
hereafter called couplers, to be used for splicing of steel reinforcing
bars. For couplers to be used for mechanical splices in reinforced
concrete structures under predominantly static loads and additional
requirements for couplers to be used in structures subject to high cycle
elastic fatigue loading and/or to low cycle elastic-plastic reverse
loading.
ISO 15835-1:2009 is intended to be applicable in relation to the various reinforced concrete design standards as well as in relation to the various standards for steel reinforcing bars. also provides directions for the evaluation of conformity of couplers.
ISO
6892 specifies the method for tensile testing of metallic materials and
defines the mechanical properties which can be determined at room
temperature. Related standard ASTM E8 , JIS Z2241 Method of tensile
test for metallic materials.
ASTM A615/A615M : Standard Specification for Deformed and Plain Carbon-Steel Bars for Concrete Reinforcement
Steel reinforcing bars are designed to absorb the stress and weight of concrete structures such as bridges and buildings. ASTM D615 is a testing standard that provides dimensional, chemical, and physical requirements for plain and deformed carbon steel bars manufactured for concrete reinforcement. Deformed bars include surface protrusions to prevent longitudinal movement after being placed in concrete, while plain bars are smooth sided. These products may be supplied in cut lengths or coils, and are engineered for the express purpose of building and construction.
While ASTM A615 references ASTM A370 and ASTM E290 for tensile and bend testing respectively, this standard includes specific procedures relevant to performing these tests on plain and deformed bar. These tests are performed in order to determine physical properties such as strength, elongation, and satisfactory surface condition after bending. Notably, bars produced in accordance with ASTM A706/A706M are also considered to be in conformance to this standard.
ISO 6935-2:2019 Steel for the reinforcement of concrete Part 2: Ribbed bars
This part of ISO 6935 specifies technical requirements for ribbed bars to be used as reinforcement in concrete.
Tensile test (ISO 6935-2 Ribbed bars rebar tensile testing machine)
The tensile test shall be carried out in accordance with ISO 15630-1.
For the determination of percenbtage elongation after fracture, A5,the original gauge length shall be 5 times the nominal diameter.
For the determination of percentage total elongation at maximum force, Agt, equidistant marks shall be made on the free length of the test piece. The distance between the marks shall be 20 mm, 10 mm or 5 mm, depending on the bar diameter.
About the rebar connection type:
Mechanical splicing of rebar, as a key technology for rebar connection in modern construction projects, has reliability that directly affects the integrity, load-bearing capacity, and seismic performance of concrete structures. Conducting rebar mechanical connection testing is a necessary step to ensure structural safety, control construction quality, and comply with mandatory national standards. This testing, through scientific evaluation of the mechanical performance and workmanship quality of the connections, can effectively prevent potential safety hazards caused by connection failures. It plays an irreplaceable role in ensuring the safety and durability of major infrastructure, residential buildings, and public structures. Its core applications cover various cast-in-place and precast concrete projects using mechanical connection methods such as straight-thread couplers, tapered-thread couplers, or extrusion couplers.
Two way of rebar connection:

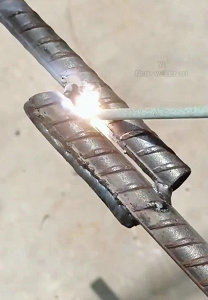

| Wedling connection | The advantage of rebar welding is that there is no need to drill holes in the steel, which saves time and labor, and does not reduce the cross-sectional area of the material, allowing it to be fully utilized. Moreover, components of any shape can be directly connected, generally without auxiliary parts, making the connection simple, with short load paths and wide applicability. Welded connections also provide good airtightness and watertightness, greater structural rigidity, and better overall structural integrity.
|
| Main test items: Tensile strength and cold bending strength. | |

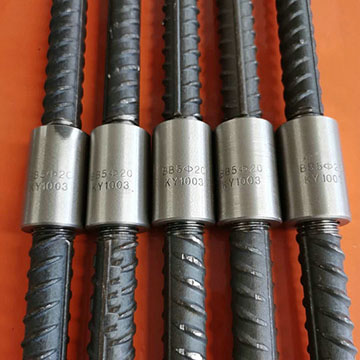

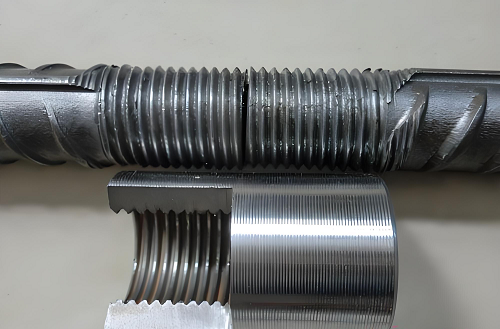

| Mechanical splices connection | The advantages of mechanical splicing of rebar lie in its high connection strength, stable and reliable connection quality; good fatigue resistance; material savings; convenient construction; fast connection speed; and during construction, it produces no noise pollution, no open flames, no smoke or dust, making it safe, reliable, and environmentally friendly.
|
| Main test items: Tensile strength, residual deformation, Cyclic Load Test, Slip test. |
